Component list:
| item# | Name | Amount | Description | Picture |
|---|---|---|---|---|

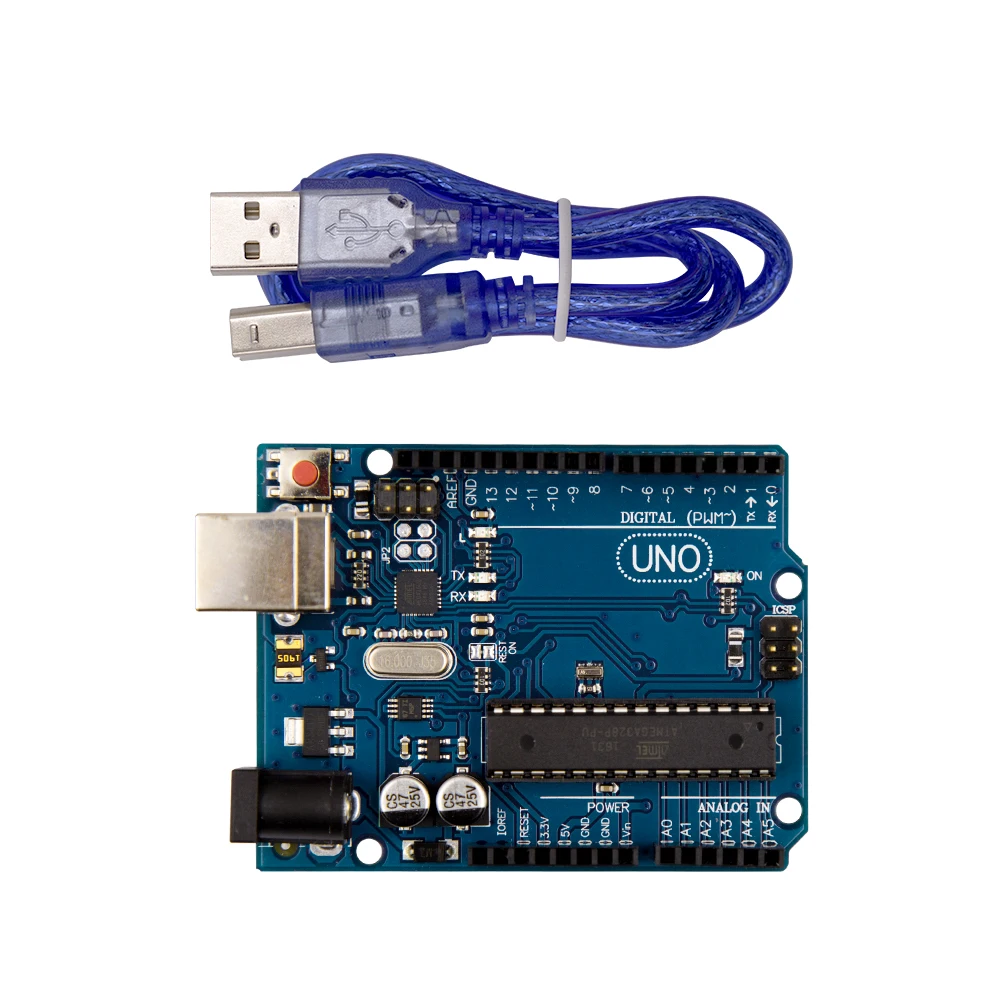

| 1 | Arduino Uno | 1 | Blue PCB, will be your best friend during many hours of glorious embedded programming (and debugging). |
|
| 2 | Breadboard 1660 hole | 1 | Big, flat, white, full of holes. Please see picture for how it is connected internally. terminals are connected Between two red lines. |
|
| 3 | 140 jumper wire kit | 1 |
| |
| 4 | 9V battery snap | 1 |
| |
| 5 | R/B stranded wire | 1 |
| |
| 6 | Photoresistor | 6 |
| |
| 7 | Potmeter 10k | 3 |
| |
| 8 | LM35 | 1 | Temperature sensor |
|
| 9 | Pushbutton | 10 |
| |
| 10 | SW-520D | 1 | Tilt Sensor |
|
| 11 | 16x2 LCD display | 1 |
| |
| 12 | White led 5mm | 10 |
| |
| 13 | RGB led 5mm | 10 | Common Cathode, 4 legs |
|
| 14 | Red led 5mm | 10 |
| |
| 15 | Green led 5mm | 10 |
| |
| 16 | Yellow led 5mm | 10 |
| |
| 17 | Blue led 5mm | 10 |
| |
| 18 | Small DC motor 6/9V | 1 |
| |
| 19 | MG90S servo | 1 |
| |

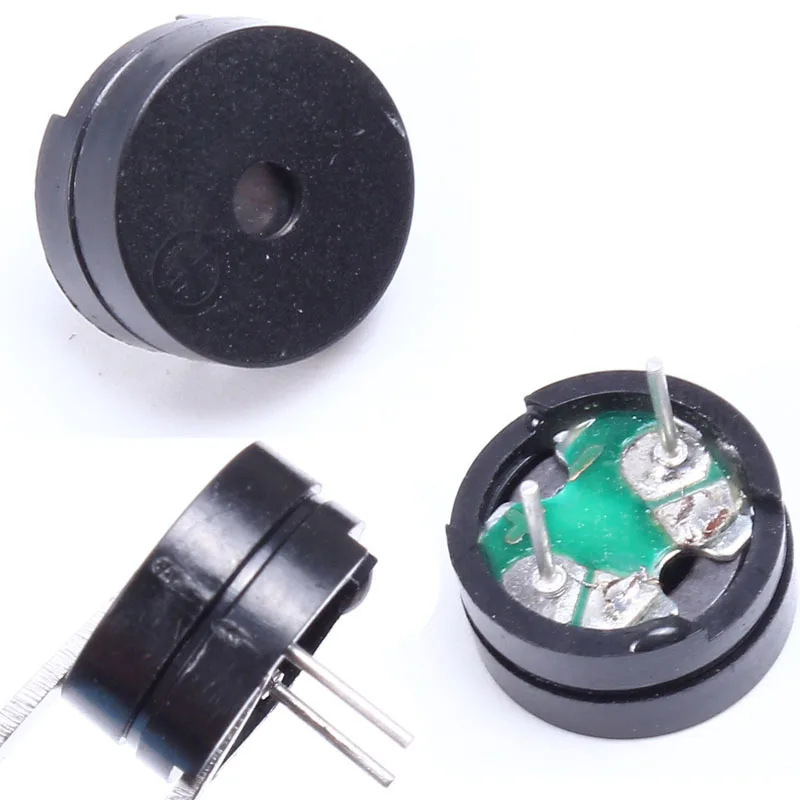

| 20 | Buzzer | 1 | Makes sound if you apply a square wave to it. The perfect tool to annoy everyone else at the lab. |
|
| 21 | L293D Motor driver | 1 |
| |
| 22 | 4N35 Octocoupler | 1 |
| |
| 23 | IRF520 MOSFET | 1 |
| |
| 24 | 100uF | 5 |
| |
| 25 | 1N4007 | 3 | Diode, white part is cathode (Minus, aka no electricity will flow from white side to black side.) |
|
| 26 | Resistor kit | 1 |
| |
| 27 | OLED 64x128 i2c | 1 |
| |
| 28 | Joystick | 1 | ||
| 29 | BC556B | 3 | PNP Transistor |
|
| 30 | BC548B | 3 | NPN Transistor |
|
| 31 | HC-SR04 | 1 | Ultrasonic Wave Detector, Distance Sensor |
|
| 32 | ANENG AN8009 | 1 | Multimeter |
|
| 33 | Alu case | 1 | ||
| 34 | Compartment box | 1 |
|
